High-quality MS & Galvanized Hollow Sections for construction and industrial use.

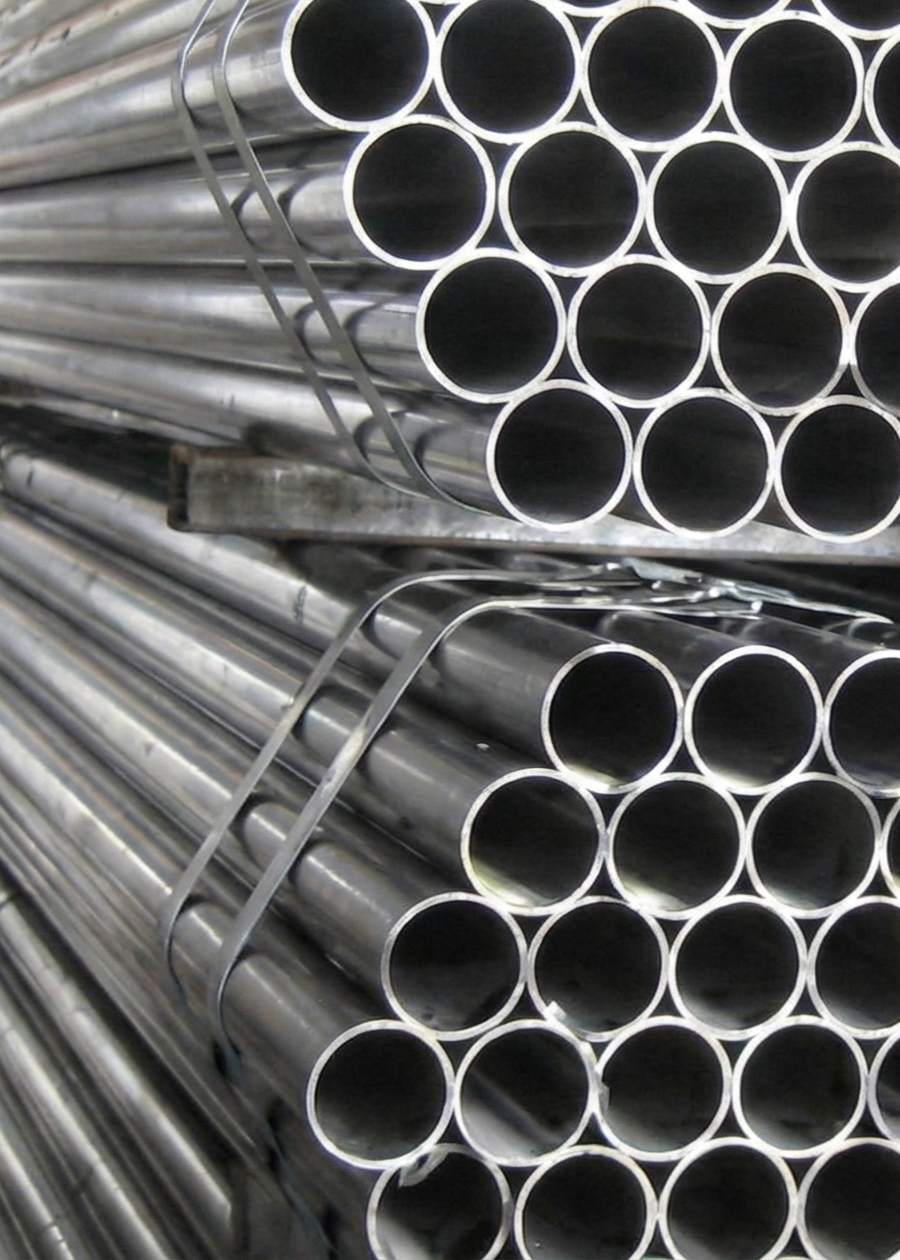

| Nominal Bore (NB) | Outer Diameter (mm) | Thickness Range (mm) | Weight (kg/m) |
|---|---|---|---|
| 15 NB (1/2") | 21.30 | 2.0 - 3.2 | 0.95 - 1.44 |
| 20 NB (3/4") | 26.90 | 2.3 - 3.2 | 1.38 - 1.87 |
| 25 NB (1") | 33.70 | 2.6 - 4.0 | 1.98 - 2.93 |
| 32 NB (1.25") | 42.40 | 2.6 - 4.0 | 2.54 - 3.79 |
| 40 NB (1.5") | 48.30 | 2.9 - 4.0 | 3.23 - 4.37 |
| 50 NB (2") | 60.30 | 2.9 - 4.5 | 4.08 - 6.19 |
| 65 NB (2.5") | 76.10 | 3.2 - 4.5 | 5.71 - 7.93 |
| 80 NB (3") | 88.90 | 3.2 - 4.8 | 6.72 - 9.90 |
| 100 NB (4") | 114.30 | 3.6 - 5.4 | 9.75 - 14.50 |
| 125 NB (5") | 139.70 | 4.0 - 5.4 | 13.20 - 17.50 |
| 150 NB (6") | 165.10 | 4.5 - 6.0 | 17.20 - 22.80 |

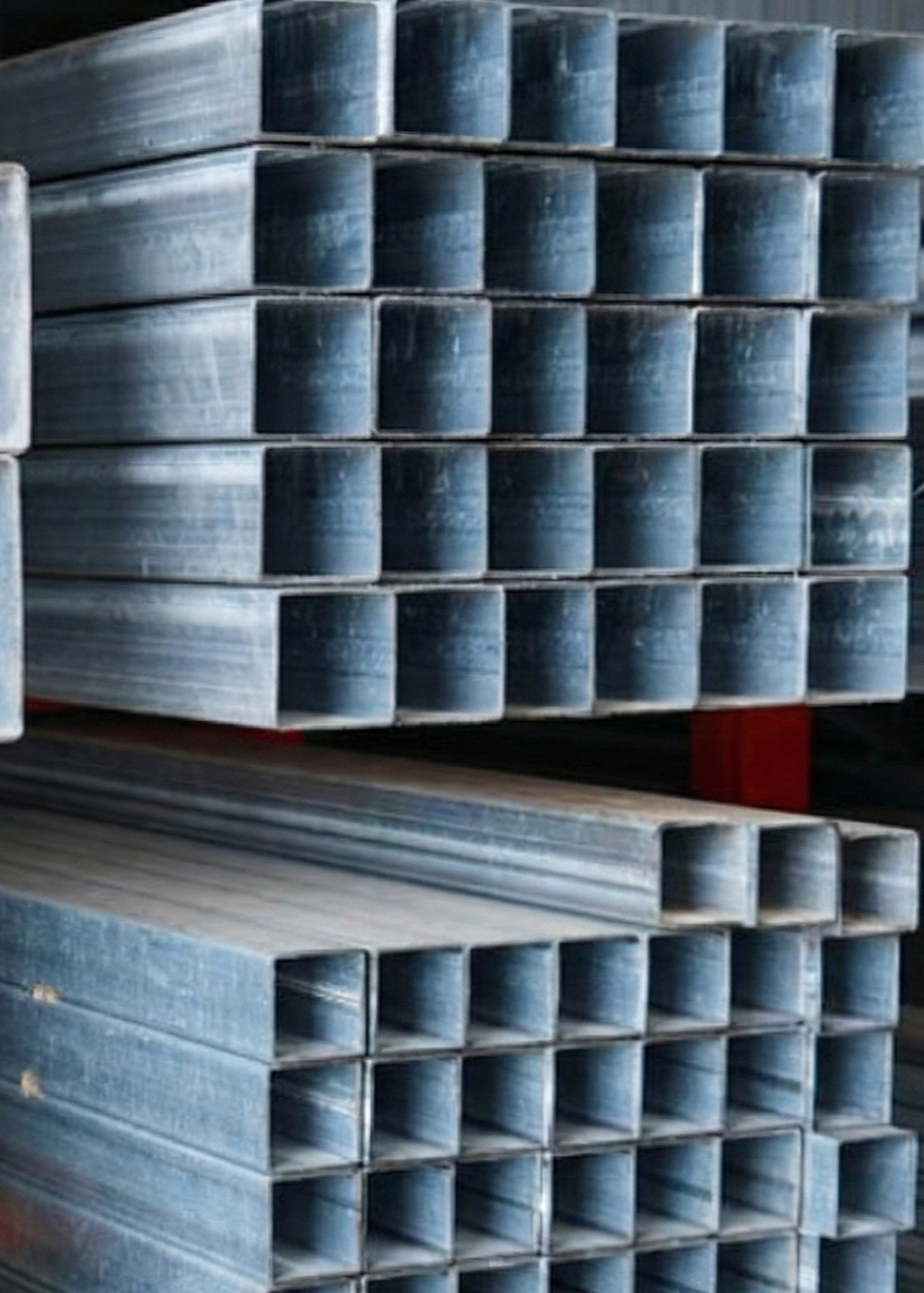

| Size (mm x mm) | Thickness Range (mm) | Weight (kg/m) |
|---|---|---|
| 19 x 19 | 1.2 - 2.0 | 0.65 - 1.05 |
| 25 x 25 | 1.2 - 3.2 | 0.89 - 2.10 |
| 30 x 30 | 1.6 - 3.2 | 1.38 - 2.60 |
| 40 x 40 | 1.6 - 4.0 | 1.88 - 4.30 |
| 50 x 50 | 2.0 - 5.0 | 2.93 - 6.70 |
| 60 x 60 | 2.5 - 5.0 | 4.40 - 8.20 |
| 72 x 72 | 2.5 - 5.0 | 5.30 - 10.10 |
| 80 x 80 | 3.0 - 6.0 | 7.10 - 13.50 |
| 100 x 100 | 3.0 - 8.0 | 8.96 - 22.30 |
| 132 x 132 | 4.0 - 8.0 | 15.80 - 30.50 |
| 150 x 150 | 5.0 - 10.0 | 22.20 - 43.50 |

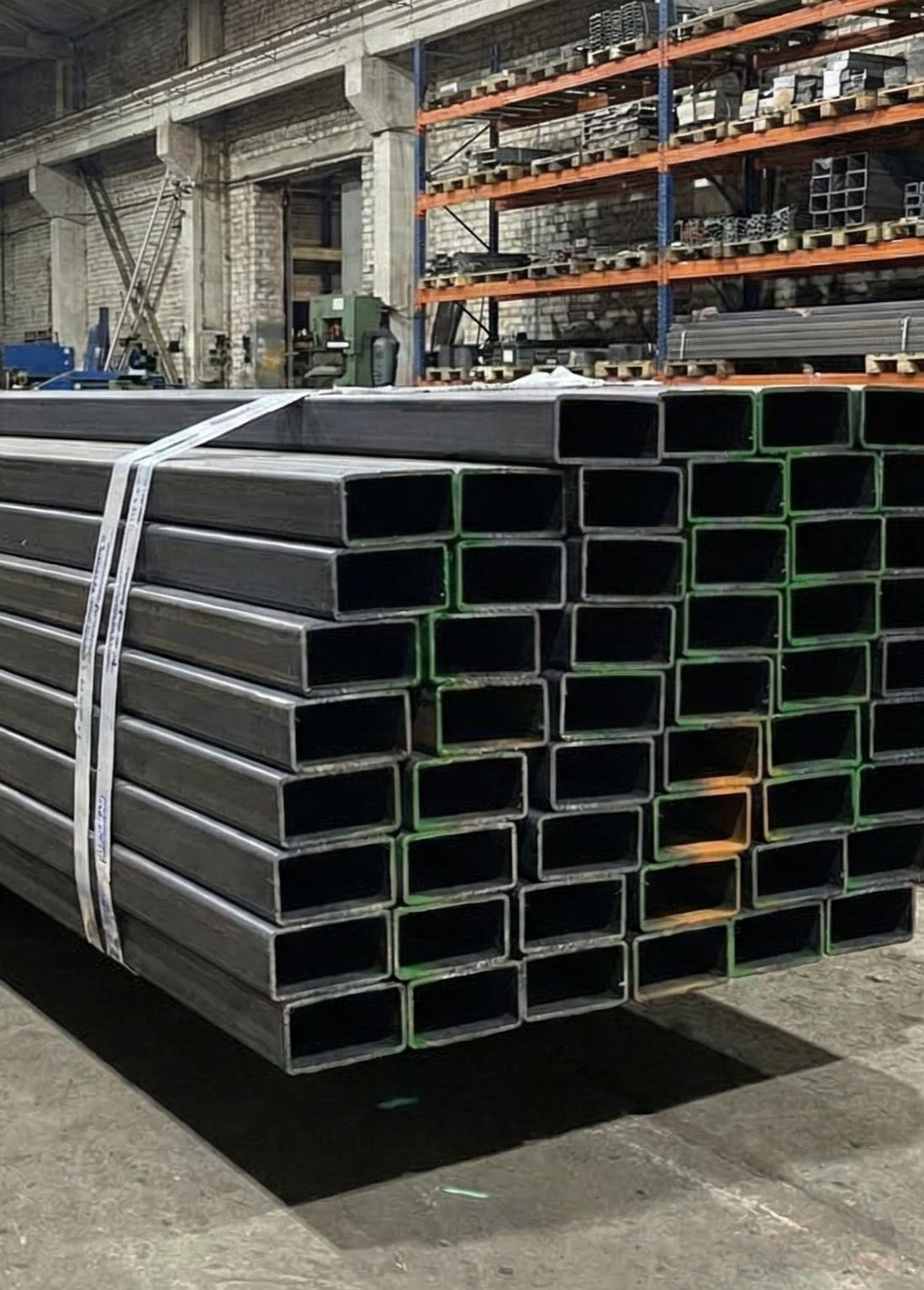

| Size (mm x mm) | Thickness Range (mm) | Weight (kg/m) |
|---|---|---|
| 40 x 20 | 1.2 - 2.5 | 1.05 - 2.10 |
| 50 x 25 | 1.6 - 3.2 | 1.75 - 3.30 |
| 60 x 40 | 1.6 - 4.0 | 2.35 - 5.50 |
| 80 x 40 | 2.0 - 5.0 | 3.50 - 8.20 |
| 96 x 48 | 2.5 - 5.0 | 5.30 - 10.10 |
| 100 x 50 | 2.5 - 6.0 | 5.60 - 12.50 |
| 120 x 60 | 3.0 - 6.0 | 8.05 - 15.60 |
| 150 x 75 | 4.0 - 8.0 | 13.40 - 25.80 |
| 200 x 100 | 5.0 - 10.0 | 22.20 - 43.50 |
