Advanced steel-concrete composite floor systems for high-rise construction.

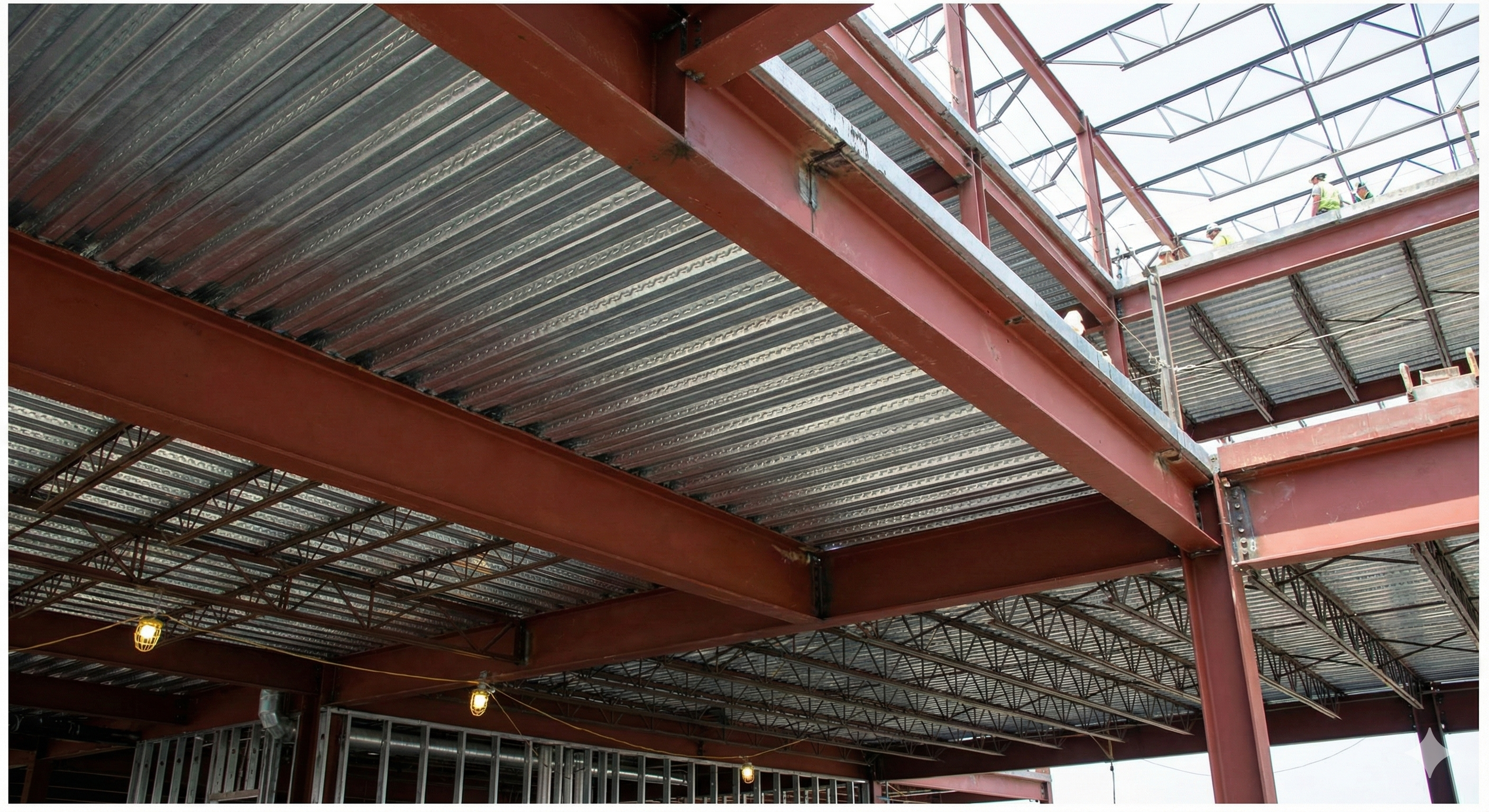

SGR Super Deck is a cold-formed corrugated steel sheet supported by steel joists or beams. It is designed to act as a permanent shuttering system and a tensile reinforcement for concrete floor slabs.
Also known as a Composite Deck, it features engineered embossments on the vertical ribs that bond with the concrete slab to develop a truly composite floor system. This blends the speed and versatility of steel with the durability of concrete.
| Property | Specification |
|---|---|
| Depth of Profile | 44mm / 52mm / 75mm (Customizable) |
| Cover Width | 900mm - 1000mm |
| Thickness Range | 0.80mm - 1.20mm (upto 2.00mm on request) |
| Material Grade | Yield Strength: 250 - 350 MPa |
| Material Type | CRCA, Galvanised (GI), GP Skin Pass |
| Zinc Coating | Z120 - Z275 GSM |
| Length | Custom cut up to 12 meters |
| Thickness (mm) | Weight (Kg/m²) | Moment of Inertia (cm⁴) | Section Modulus (cm³) |
|---|---|---|---|
| 0.80 | 7.85 | 83.71 | 28.14 |
| 0.90 | 8.83 | 94.06 | 31.63 |
| 1.00 | 9.81 | 104.38 | 35.11 |
| 1.20 | 11.78 | 124.91 | 42.05 |
| 1.50 | 14.72 | 155.46 | 52.39 |
