PEBs are steel structures built over a structural concept of primary members, secondary members, and the cover sheeting connected to each other. These buildings are custom-designed to be lighter in weight and high in strength.
Manufactured in our factory and assembled at the site using bolted connections, PEBs reduce construction time by up to 30% compared to conventional buildings. They offer large column-free spans, making them ideal for warehouses and factories.
Download Brochure
We offer a wide variety of structural systems to meet your specific requirements.
Butterfly Module
Single Beam Wing Grip
Fixed Beam Single Reach

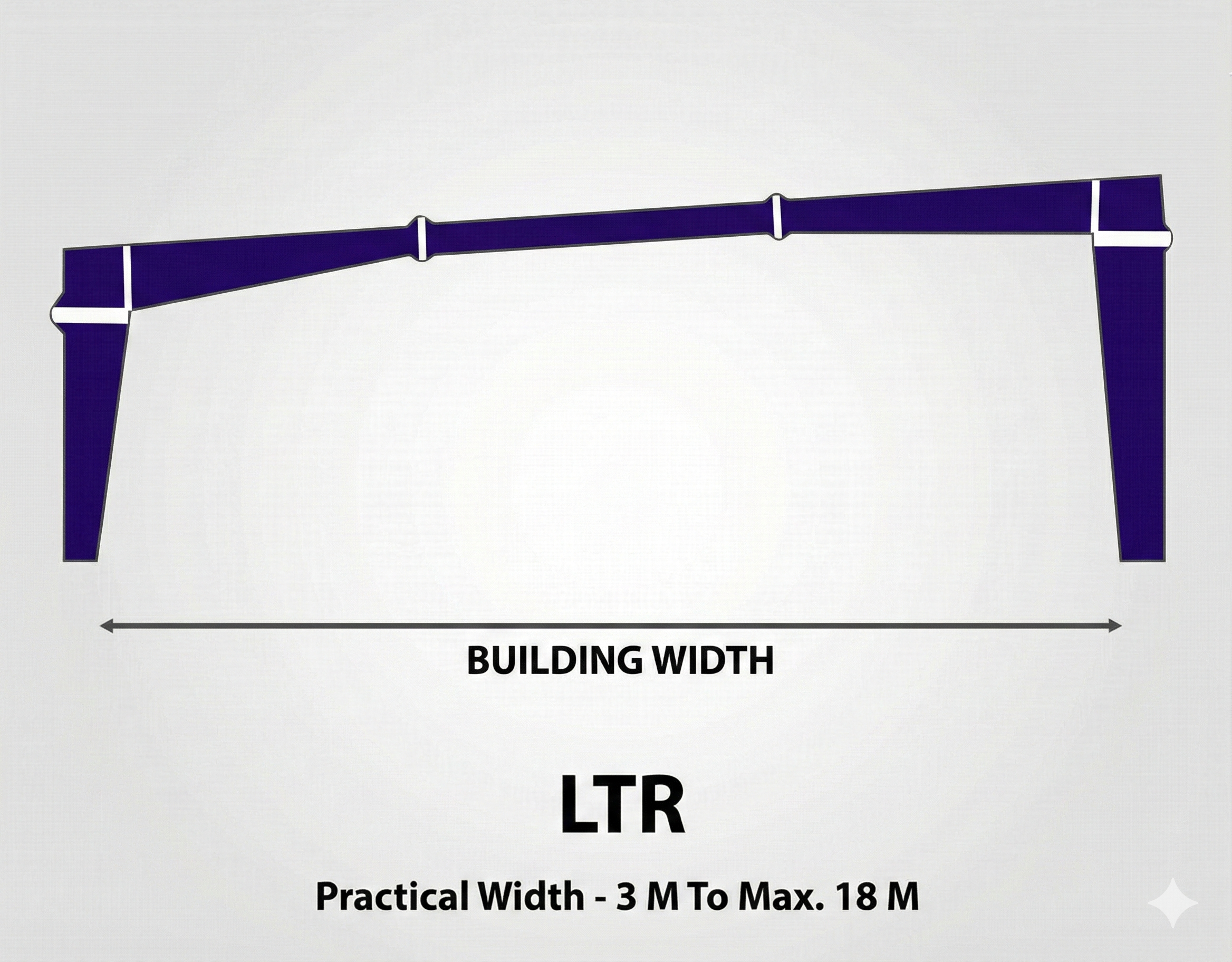

Lean-To Roof
Tapered Beam Single Reach

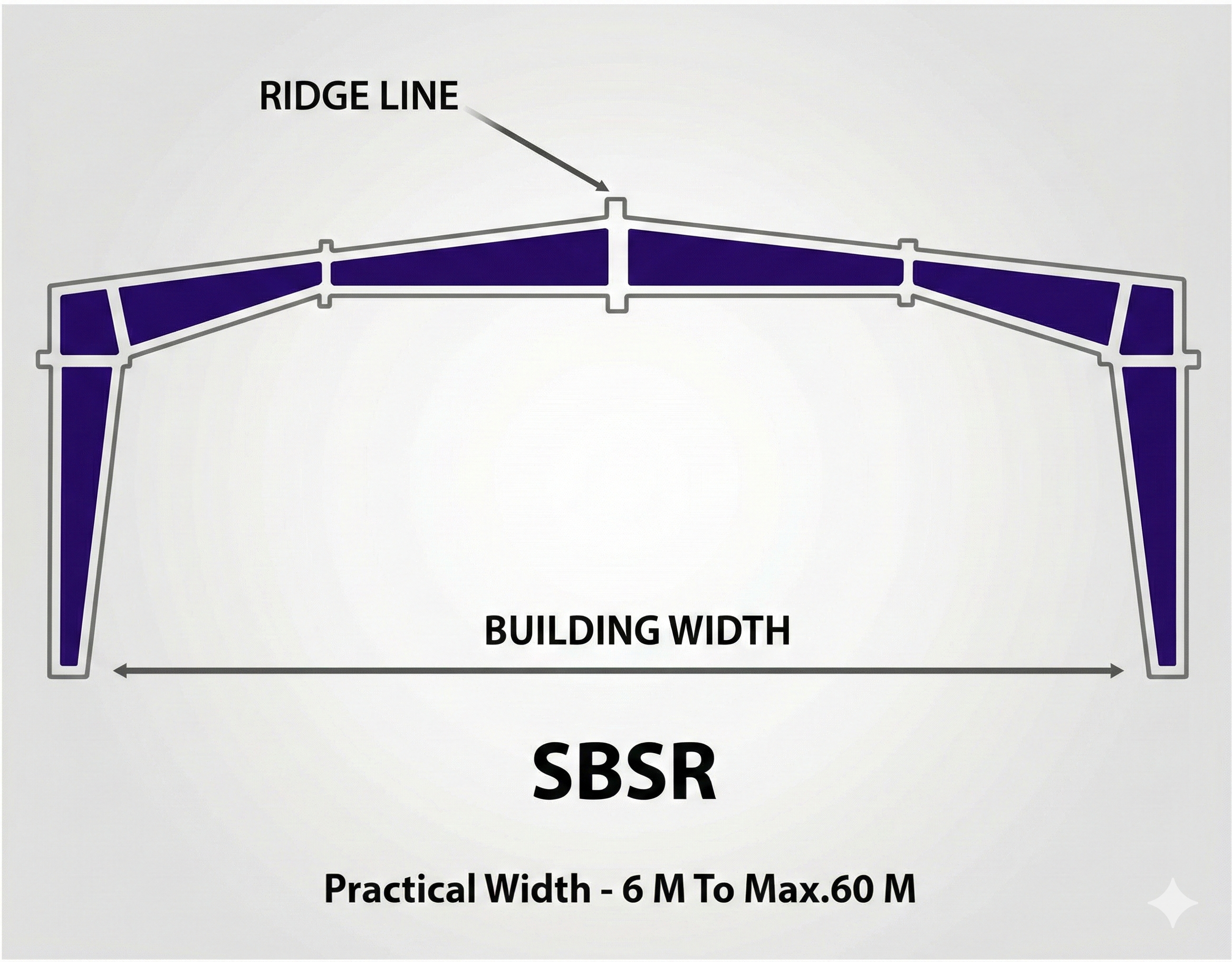

Single Beam Single Reach
Double Beam Double Reach
Double Beam Single Reach
Butterfly Module
Single Beam Wing Grip

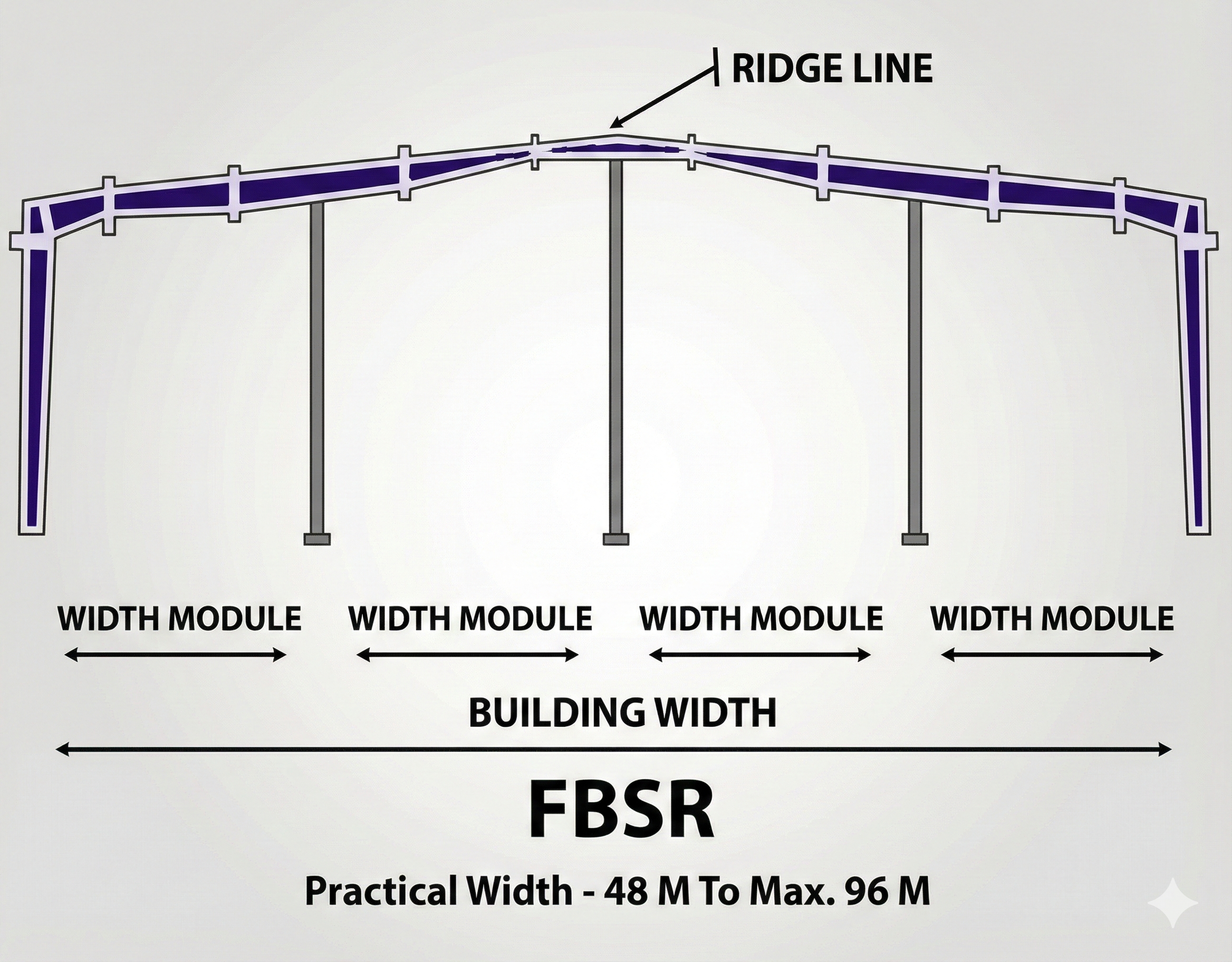

Fixed Beam Single Reach
Lean-To Roof

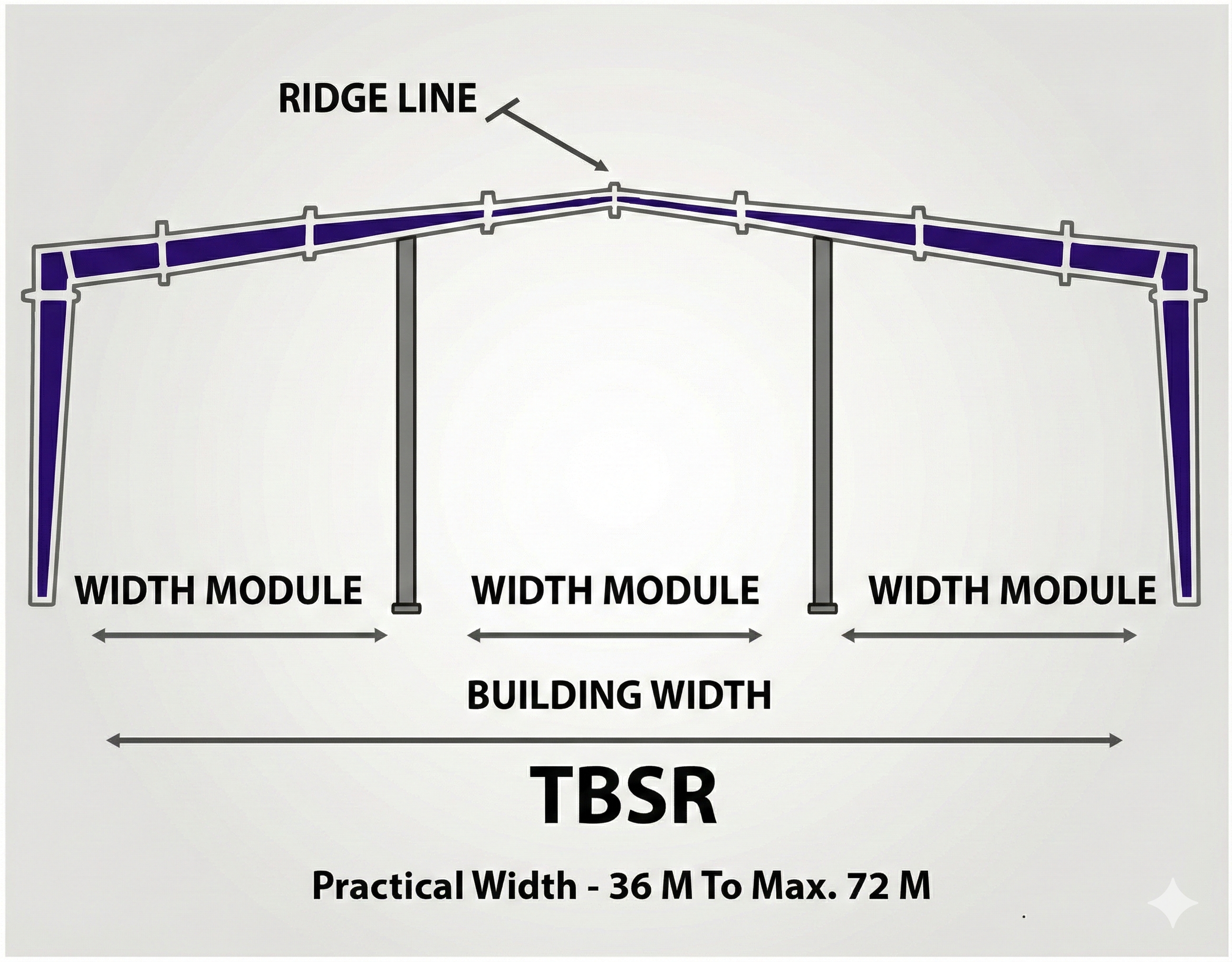

Tapered Beam Single Reach
Single Beam Single Reach
Double Beam Double Reach
Double Beam Single Reach

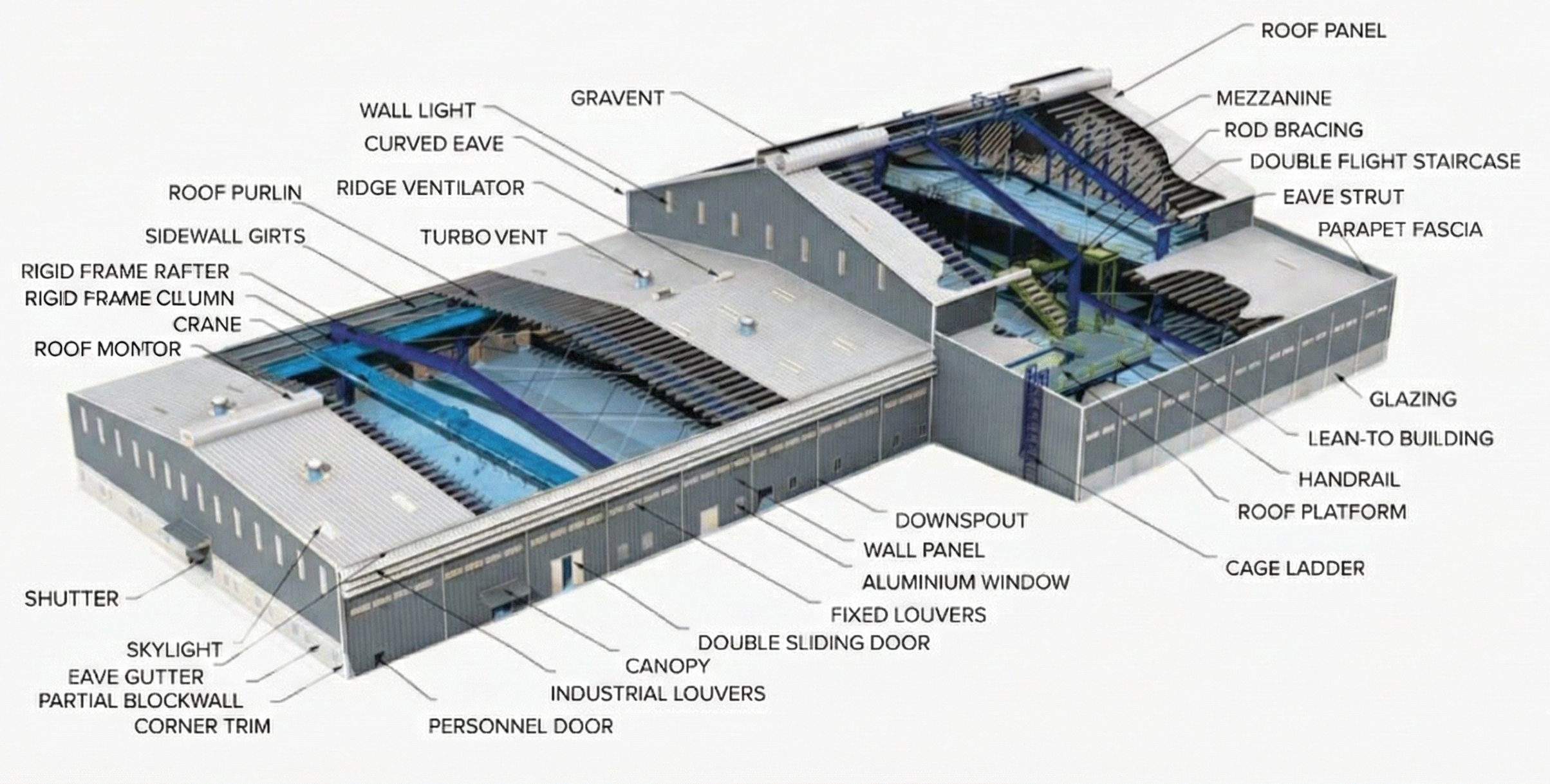

A complete building system comprising mutually dependent parts.
The main load-bearing frames of the building.
Structural support for roof and wall sheeting.
The aesthetic and protective skin of the building.
Functional additions for ventilation and access.
Delivering excellence across diverse sectors.

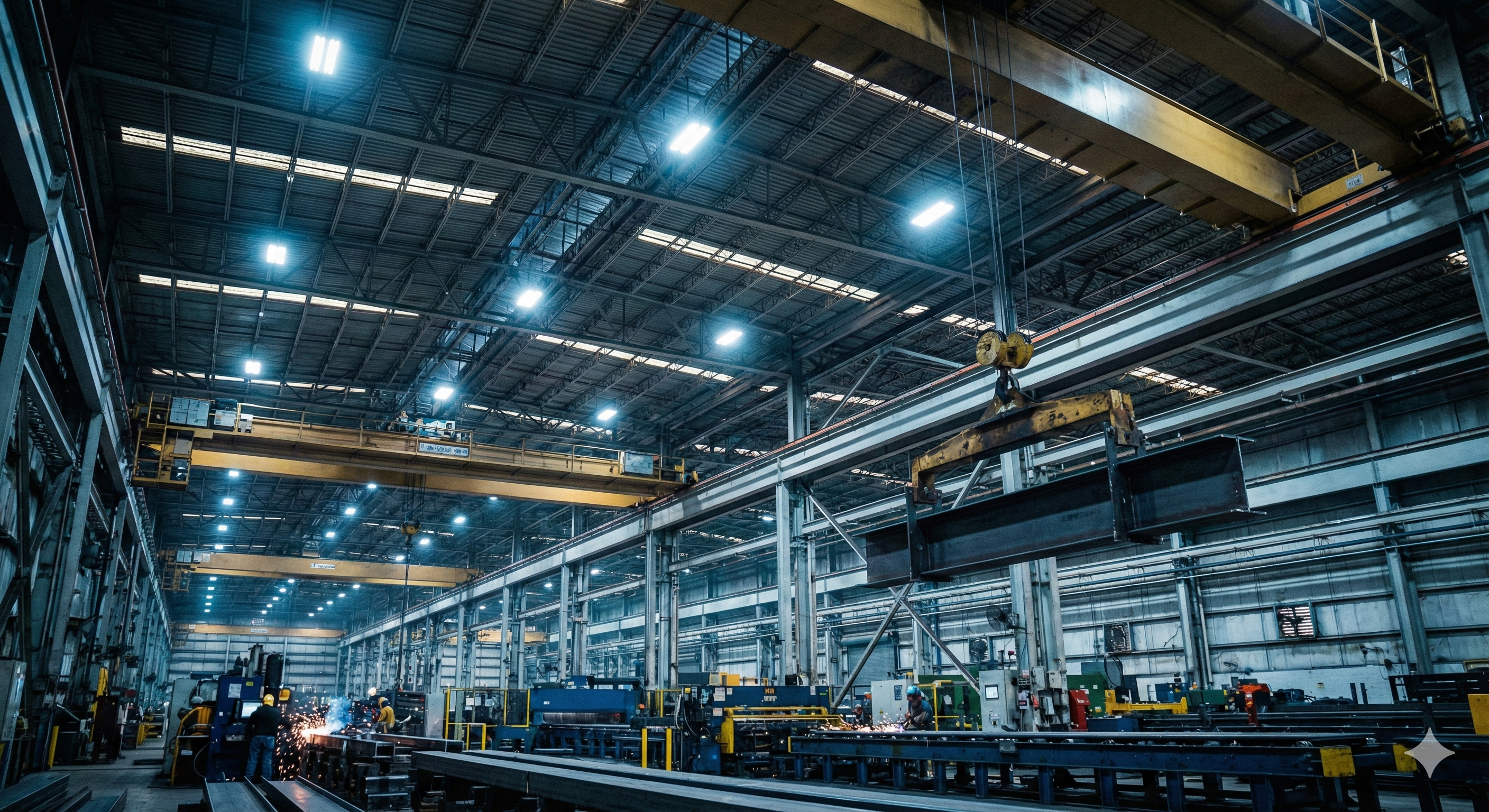

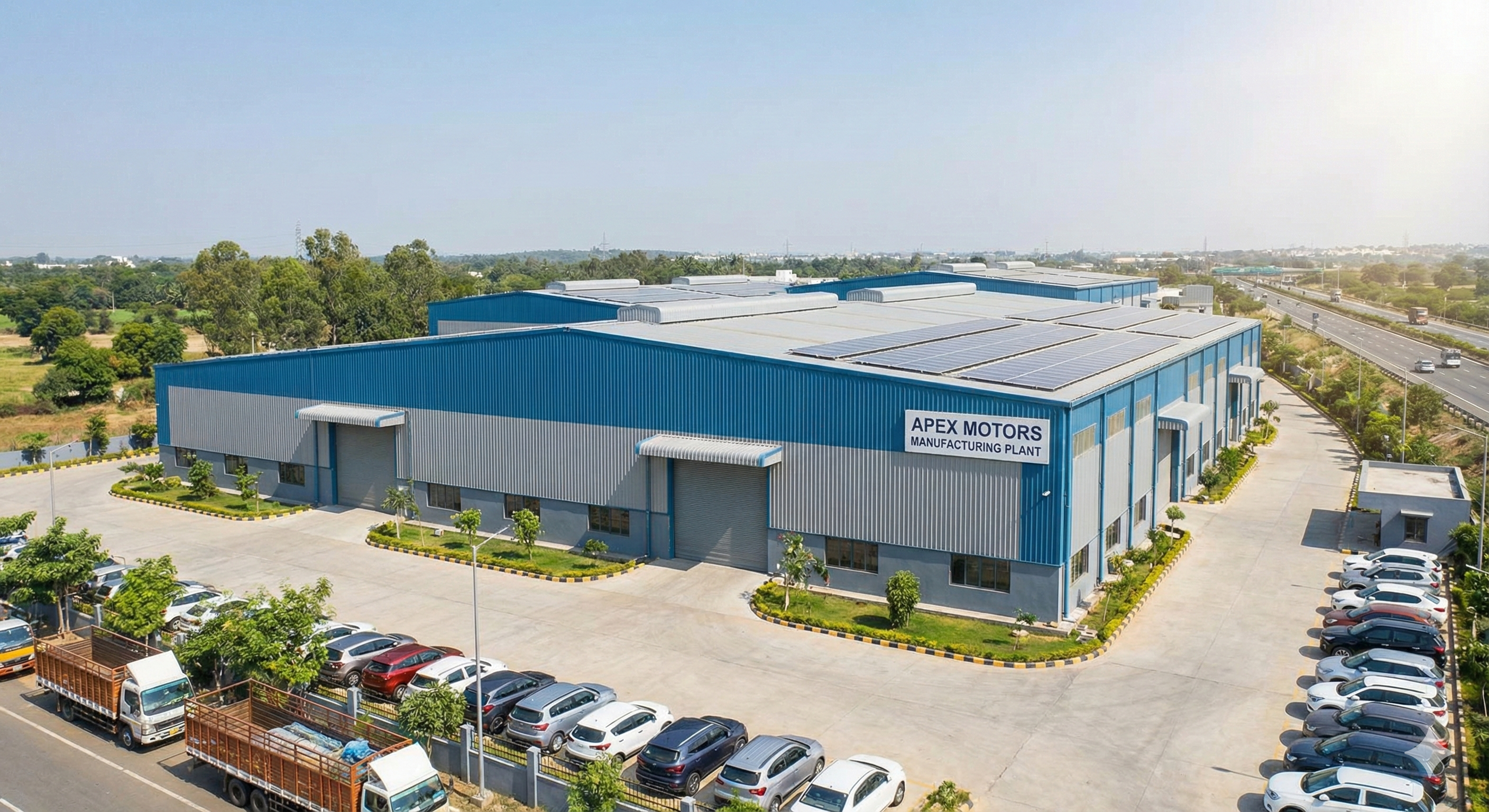

50,000 sq.ft manufacturing facility with heavy gantry cranes.

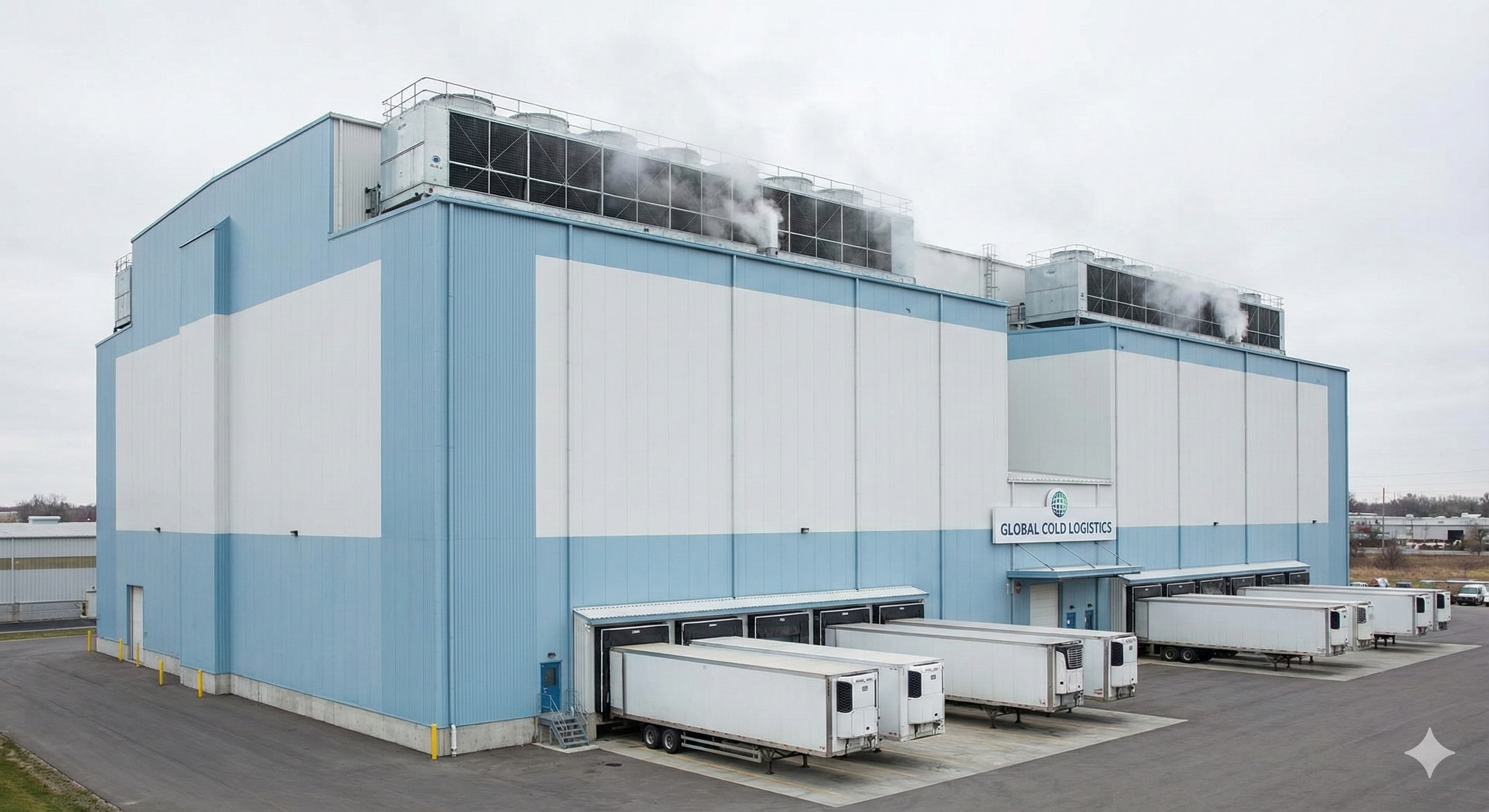

Temperature-controlled warehouse using Puff Panel cladding.

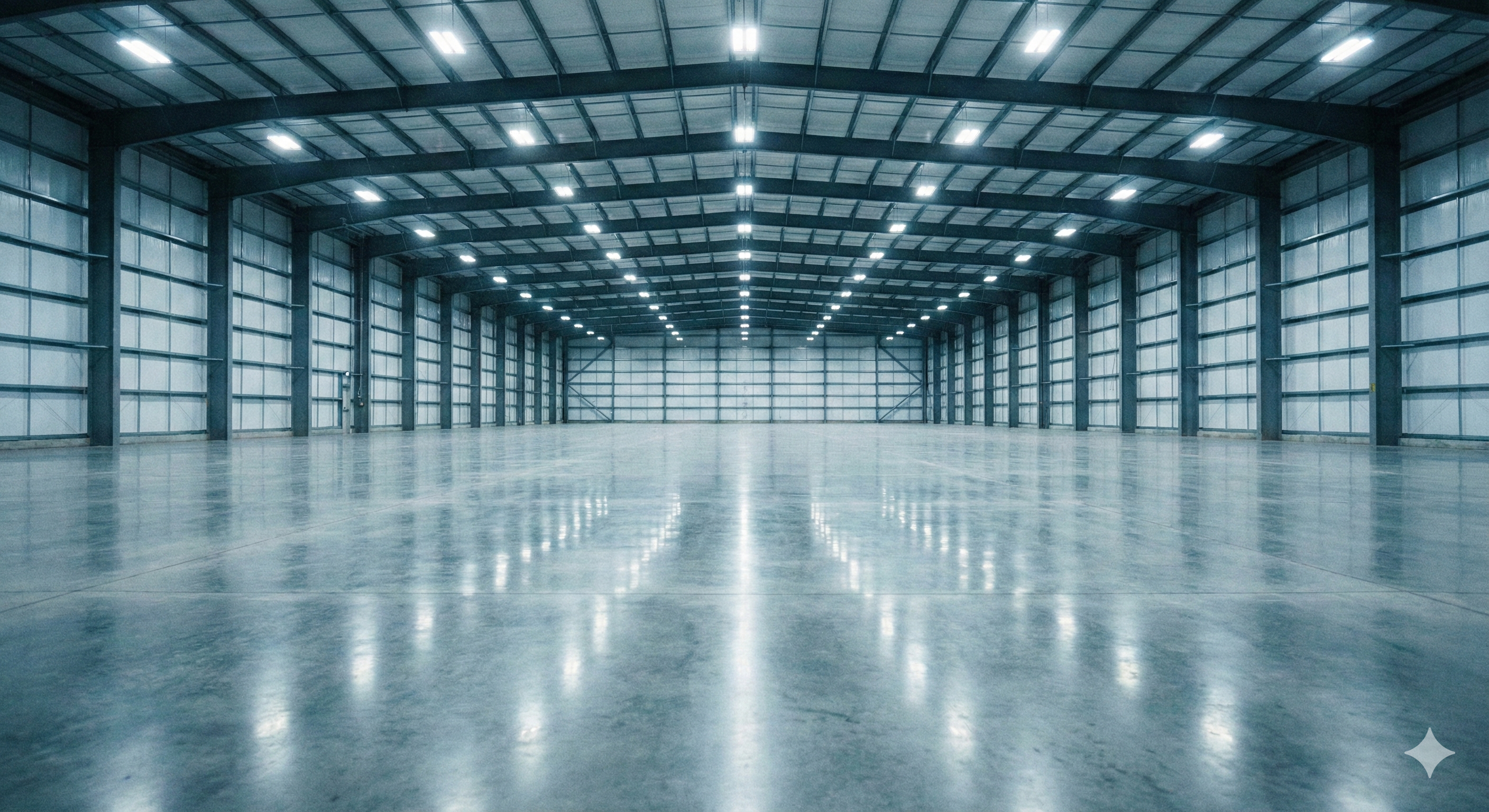

High-bay warehousing solution with 30m clear spans.
| Design Codes | MBMA 2002, AISC 1989, AISI 1996, AWS D1.1 |
|---|---|
| Primary Material | High Grade Steel Plates (ASTM A572 Grade 50 / 345 MPa Yield Strength) |
| Secondary Material | Galvanized Steel (ASTM A653 Grade 50 / 345 MPa) - Z120 to Z275 Coating |
| Connections | High Strength Bolts (ASTM A325) for Primary, Machine Bolts (ASTM A307) for Secondary |
| Painting | Synthetic Enamel / Epoxy Paint (DFT 30-150 Microns) over Red Oxide Primer |
| Deflection Limits | Main Frame: H/180 to H/300 | Purlins: L/180 |
